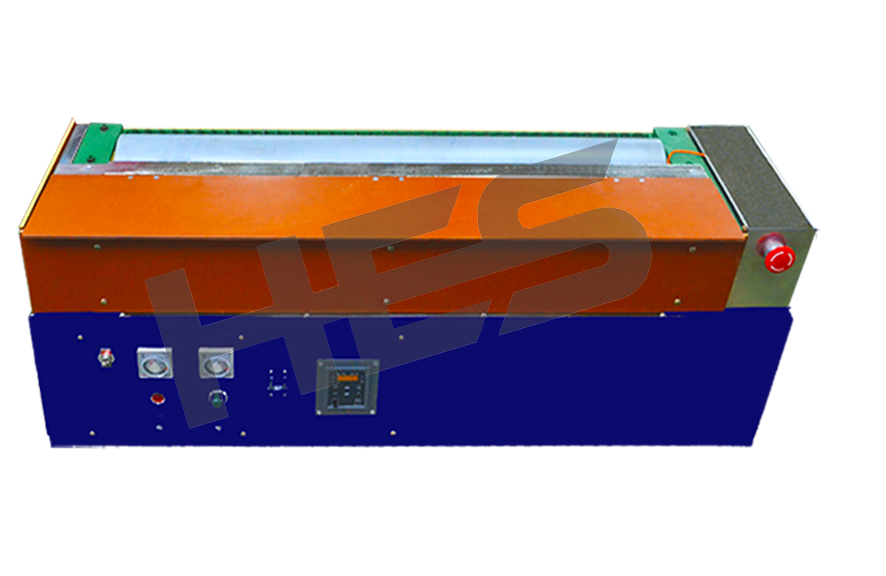

HS7005A-B Hot Melt Applicator

中英文型錄下載UP
HS7005A-B

FEATURES

  1. Without pressing roller, immediately paste and stick on required material. Coating thickness is adjustable. Suitable for material that needed to be coated whole surface, like flat wood and foam, etc.
  2. Equipped with inverter to precisely control speed of roller.
  3. Individual temperature control system for melting tank and roller.
  4. Equipped with isolation tank cover, emergency stop switch and cantilever for operational safety.

SPECIFICATIONS

SPEC UNIT HS7005A-B
Tank Capacity Liter 7
Max. Melting Rate Kg/HR 7
Max. Operation Temperature °C 200
Viscosity CPS 8000
Roller Width mm 800
Dimensions mm 1120 × 330 × 390
Weight Kg Approx. 130
Power Watt 5400
Power Requirement   220V AC,25A,50/60Hz,1Φ
